GI Angle
Hot-dip galvanized L-shaped steel angle, equal and unequal, 25x25 mm to 200x200 mm, for towers, roofing, solar mounting and outdoor structures.
- Material
- GI
- Standards
- IS 808 / IS 2062 / IS 4759
- Finishing
- Hot-Dip Galvanized
- SKU
- NW-GI-ANG-005

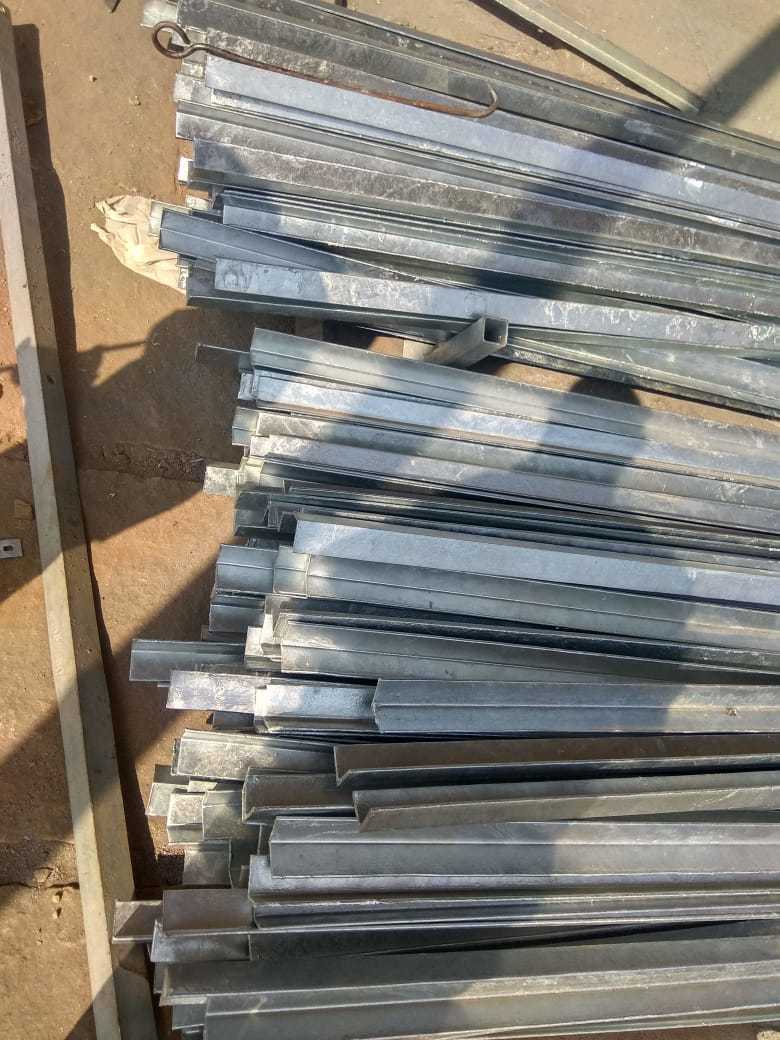

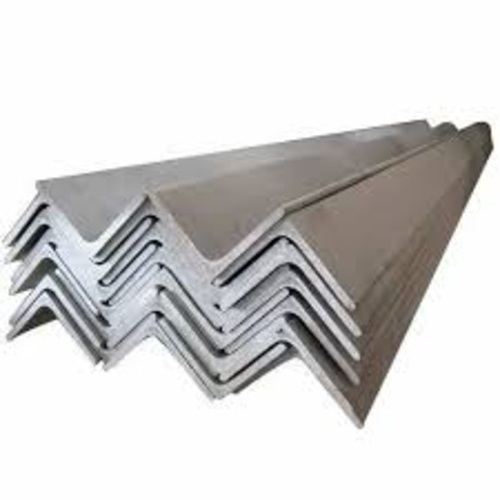

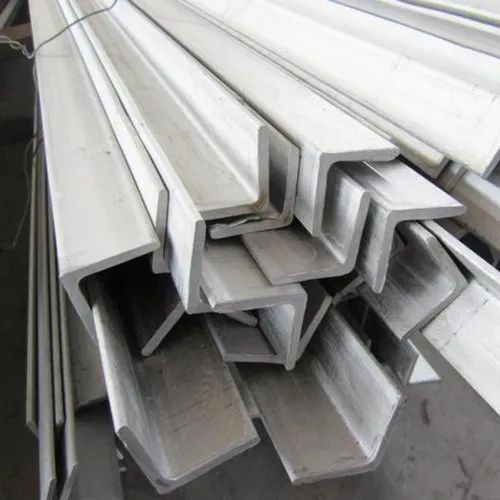

GI Angle – Hot-Dip Galvanized Steel Angle Bar
Galvanized Iron (GI) Angles, also known as galvanized steel angle bars, are L-shaped structural steel sections. They are hot-dip galvanized with zinc to protect the steel from rust, moisture and corrosion in outdoor and harsh environments.
GI angles are available as Equal Angles, where both sides are the same width, and Unequal Angles, where the sides have different widths. Sizes range from 25 x 25 mm up to 200 x 200 mm, with thickness from 3 mm to 16 mm depending on the load. Standard lengths are 6 metres (20 ft) and 12 metres.
Weight reference (approx.)
- 25 x 25 x 3 mm – 1.10 kg/m (light duty, framing)
- 40 x 40 x 5 mm – 3.00 kg/m (medium structural supports)
- 50 x 50 x 6 mm – 4.50 kg/m (heavy-duty bracing, mounting)
- 75 x 75 x 6 mm – 6.80 kg/m (industrial structures, transmission towers)
Why choose Shree Ram Metals GI Angles
- Wide range of sizes in stock
- Cut-to-length supply on request
- Pan-India delivery for project and bulk orders
Contact us for pricing, bulk quotations and custom sizes.
